TRC-RT by S&P (Rooftop Commercial Applications)
Energy Recovery Ventilators
Model Features
- MERV 8 filters (MERV 13 options available)
- Airflow range 166–1853 cfm
- TRCe models equipped with on-board potentiometer for easy speed variation
- Transformer/relay package allowing simple on/off control
- Access doors for easy maintenance
- Fully insulated case
- Large cores for higher efficiency
- No condensate pan or drain required
- AHRI certified for performance
- CETLus Listed for electrical safety
- An industry-leading ten-year warranty for the static-plate core, two-year warranty for commercial ERVs
- This product meets the requirements of Buy American (2009) and Build America, Buy America (BABA), as part of IIJA (2022) Download letter here
Model Overview
S&P USA Ventilation Systems energy recovery ventilators (ERVs) provide a sustainable ventilation solution. The static-plate, crossflow core of these ERVs separates the outgoing, polluted indoor airstream from the incoming fresh airstream while transferring total energy (heat and water vapor) between the two. This prevents the mixing of airstreams and the transfer of pollutants across partition plates. In the winter, the ERVs preheat and humidify the cold, dry outside air using the warm interior air. During the summer, they precool and dehumidify the warm, humid outside air using the air-conditioned interior air.
These ERVs also moderate temperature and humidity extremes, creating a comfortable indoor environment. The unique moisture transfer capability of our core also eliminates condensation and frost build up in most applications, without requiring mechanical or electrical defrost systems. This results in higher heat recovery efficiencies, easier installation, and more reliable operation.
WARNING:
This product can expose you to chemicals including
formaldehyde, which is known to the State of California to
cause cancer. For more information go to
www.P65Warnings.ca.gov.
10-year core warranty, 2-year unit warranty
Airflow Performance for TRCeN500RT MOTOR 1P/208-230V
| Airflow (CFM) | External Static Pressure (Inches Water Column) | Unit Power Consumption (Watts) |
| 133 | 1.77 | 265 |
| 204 | 1.60 | 310 |
| 259 | 1.43 | 342 |
| 322 | 1.10 | 371 |
| 398 | 0.42 | 388 |
| 431 | 0.00 | 387 |
Airflow Performance for TRCeN800RT MOTOR 1P/208-230V
| Airflow (CFM) | External Static Pressure (Inches Water Column) | Unit Power Consumption (Watts) |
| 200 | 2.78 | 566 |
| 295 | 2.72 | 658 |
| 444 | 2.48 | 791 |
| 495 | 2.37 | 832 |
| 580 | 2.15 | 894 |
| 675 | 1.74 | 900 |
| 770 | 1.53 | 900 |
| 865 | 0.97 | 900 |
| 960 | 0.58 | 900 |
| 1100 | 0.00 | 900 |
Airflow Performance for TRCe 1200RT-230-1P
| Airflow (CFM) | External Static Pressure (Inches Water Column) | Unit Power Consumption (Watts) |
| 375 | 2.07 | 710 |
| 481 | 1.93 | 765 |
| 588 | 1.78 | 814 |
| 604 | 1.41 | 859 |
| 800 | 1.42 | 899 |
| 906 | 1.22 | 933 |
| 1013 | 0.99 | 963 |
| 1103 | 0.74 | 987 |
| 1225 | 0.46 | 1006 |
| 1378 | 0.00 | 1024 |
Airflow Performance for TRC 1600RT-230
| Blower RPM | 0.25 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | ||||||
| SCFM | BHP | SCFM | BHP | SCFM | BHP | SCFM | BHP | SCFM | BHP | SCFM | BHP | |
| 1150 | 1125 | 0.6 | 900 | 0.5 | 639 | 0.5 | - | - | - | - | - | - |
| 1200 | 1200 | 0.7 | 986 | 0.6 | 739 | 0.5 | - | - | - | - | - | - |
| 1300 | 1381 | 0.9 | 1191 | 0.8 | 973 | 0.7 | 721 | 0.6 | - | - | - | - |
| 1400 | 1582 | 1.1 | 1411 | 1.0 | 1090 | 0.9 | 977 | 0.7 | 725 | 0.6 | - | - |
| 1485 | 1715 | 1.3 | 1560 | 1.2 | 1386 | 1.1 | 1187 | 0.9 | 960 | 0.8 | 705 | 0.7 |
Dimensions for TRC1200RTH-230-3P/TRCe1200RTH-230-1P
Dimensions for TRC1200RTV-230-3P/TRCe1200RTV-230-1P
Dimensions for TRC1600RTH-230
Dimensions for TRC1600RTV-230
Dimensions for TRCeN500RTH-230-1P

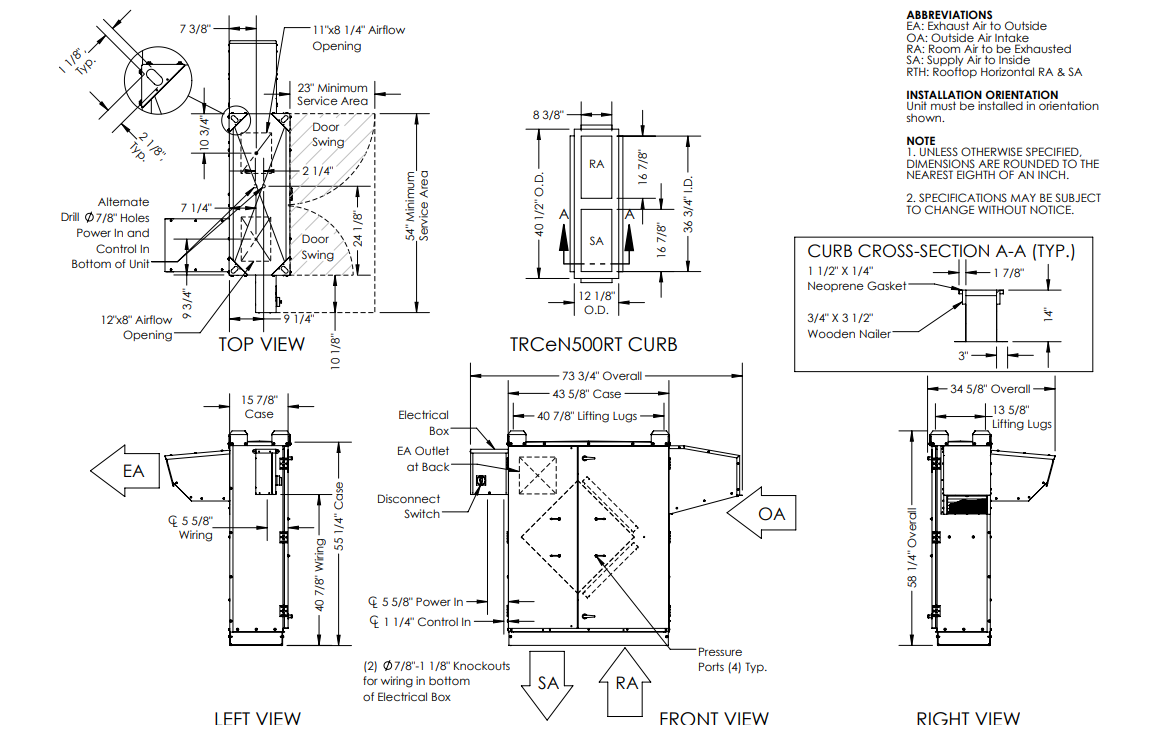

Dimensions for TRCeN500RTV-230-1P
Dimensions for TRCeN800RTH-230-1P
Dimensions for TRCeN800RTV-230-1P
Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.
Electrical Accessories
| SCO2-W | Carbon Dioxide Control - Wall Mount | IOM |
| SMC-C | MOTION OCCUPANCY CONTROL CEILING | IOM |
| SMC-W | MOTION OCCUPANCY CONTROL WALL | IOM |
| SHW-20 | Dehumidistat | Submittal |
| STC7D | Digital Time Clock | IOM |
TRC-RT Accessories
| 147599 | TRCeN500RTH Rectangular 12" X 12" Flange Kit (2 per kit) | |
| 147600 | TRCeN800RTH Rectangular 14" X 14" Flange Kit (2 per kit) | |
| 147435 | Rooftop Roof Curb (TRCEN500RT) | |
| 147384 | Rooftop Roof Curb (TRCEN800RT) | |
| 1XHECC | TRCEN500RT/TRCEN800RT Tie Down Clip Kit | |
| 190101 | Rooftop Roof Curb (CURB1.5) (TRC 1200RT) | |
| 1.5XHECC | TRC 1200RT Tie Down Clip Kit | |
| 135613 | Rooftop Roof Curb (CURB2X) (TRC1600RT) | |
| 2XHECC | TRC1600RT Tie Down Clip Kit | |
| Commercial MERV Filter | ERV Filters for TRC1200 thru TRC1600 | Submittal |
- Balanced Ventilation
- Fresh air/ Clean air/ Indoor Air Quality (IAQ)
- Energy Recovery
