TRe Total Recovery Premium

Energy Recovery Ventilators by S&P

Energy Recovery Ventilators by S&P
TR TRe TRLPe TRC TRC-RT TRCeN/TRCe
TRe

Model Features

  • More efficient EC motor
  • Speed controllable high-speed boost mode
  • Low voltage percentage timer and point of use controls
  • Individual airstream balancing capability
  • Integral test ports
  • Suitable for residential and light commercial applications
  • Can be mounted in any orientation
  • MERV 13 filters are available
  • HVI Certified
  • cETLus Listed
  • Ecowatt®

HVI cETLus Ecowatt

Model Overview

Total Recovery Premium, TRe, is the latest edition to S&P USA's line of Energy Recovery Ventilators. TRe can be used in any orientation and features an EC motor for great energy efficiency. Utilize TRe for any residential or light commercial project by individually balancing each airstream to account for variations of duct run lengths.

10-year core and 5-year unit warranty

TRe200 Airflow Performance Data

Airflow
(CFM)		 External
Static Pressure
(inches w.g.)		 Temperature
EFF%		 Total
EFF%
Winter		 Total
EFF%
Summer
Max. Speed
233 0.1 58 49 26
225 0.2 59 50 27
216 0.3 60 51 28
210 0.4 61 52 30
201 0.5 62 53 32
193 0.6 63 54 34
184 0.7 64 56 36
176 0.8 66 57 38
163 0.9 67 59 40
150 1.0 69 61 42
117 1.2 73 67 49
86 1.4 77 72 56
48 1.6 82 78 63
Min. Speed
18 0.1 86 84 71

TRe300 Airflow Performance Data

Airflow
(CFM)		 External
Static Pressure
(inches w.g.)		 Temperature
EFF%		 Total
EFF%
Winter		 Total
EFF%
Summer
Max. Speed
288 0.1 71 63 45
280 0.2 71 64 46
269 0.3 72 65 47
261 0.4 72 65 48
252 0.5 73 66 49
244 0.6 73 67 50
233 0.7 74 68 51
222 0.8 75 69 52
212 0.9 75 69 53
199 1.0 76 70 54
170 1.2 78 73 57
136 1.4 80 75 60
93 1.6 83 79 64
36 1.8 86 83 69
Min. Speed
67 0.1 85 81 67
36 0.2 86 83 69

Dimensions for TRe200

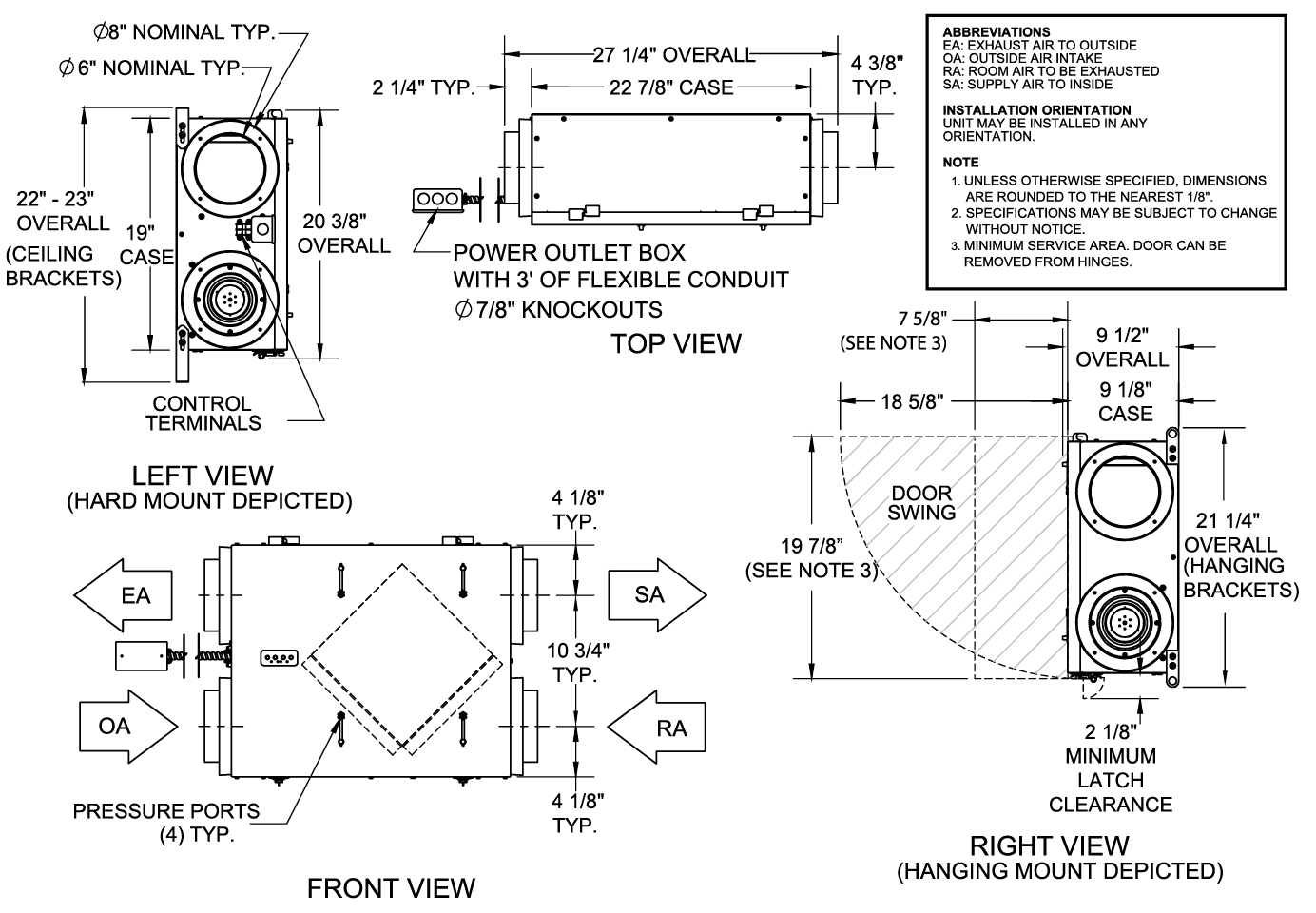

Dimensional Drawing for the TRLPe100 Model

Dimensions for TRe300

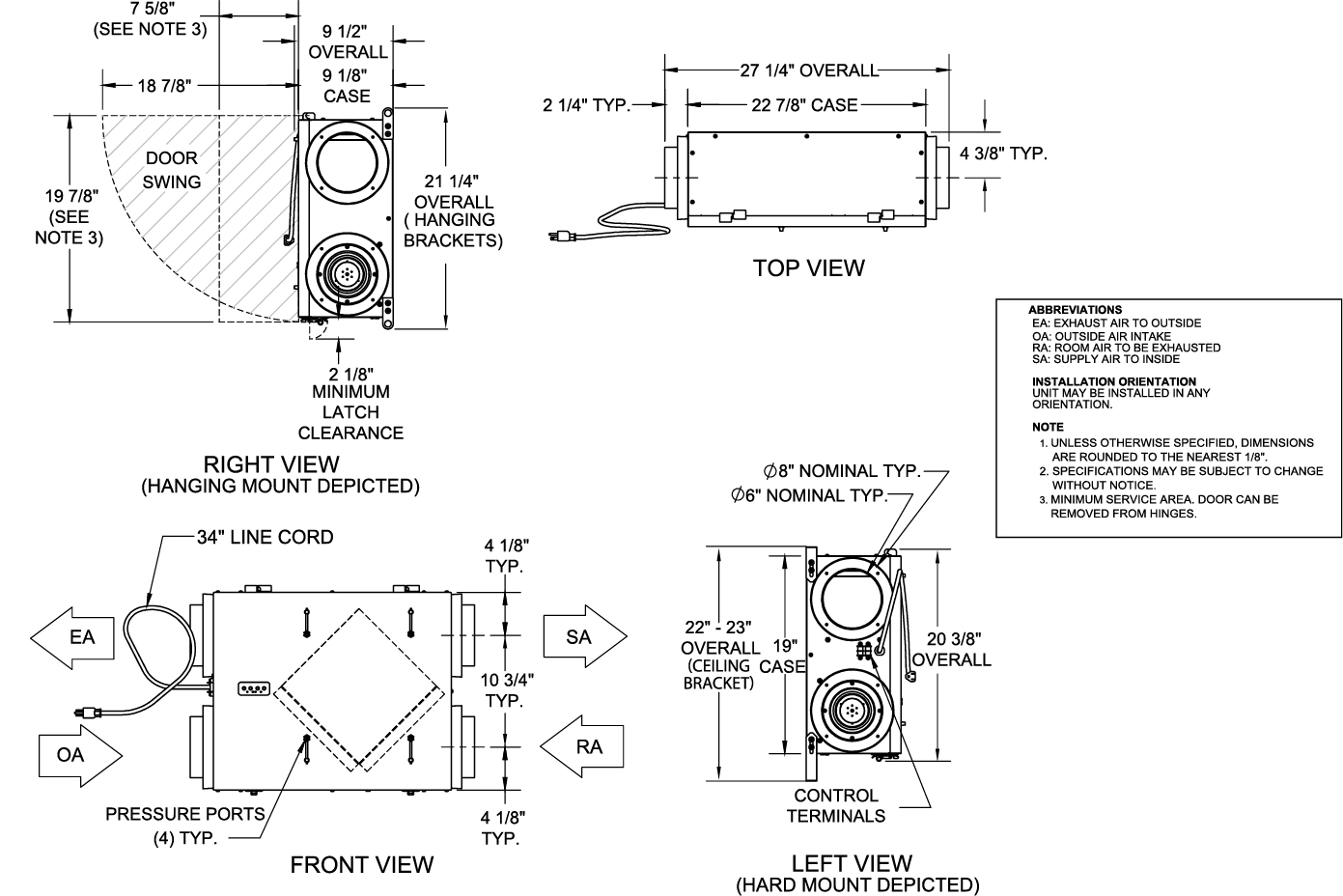

Dimensional Drawing for the TRLPe100C Model

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

General Accessories

CAR150 6" Steel Backdraft Damper Submittal
CAR200 8" Steel Backdraft Damper Submittal

Electrical Accessories

SPTL Percentage Timer Control (TRe200/TRe300) IOM
SPBL Push Button Point-of-Use Control (TRe200/TRe300) IOM
SFM Percentage Timer Control with Furnace Interlock IOM
SPBT Push Button Point of Use Boost Timer (TRe200/TRe300) IOM
STC7D-W DIGITAL TIME CLOCK - WALL MOUNT IOM
SMC-C MOTION OCCUPANCY CONTROL CEILING IOM
SMC-W MOTION OCCUPANCY CONTROL WALL IOM
SCO2-W CO2 CONTROL WALL MOUNT IOM

Standard Accessories

990757 MERV 13 Filter ERV 3PK (TRe200)
990759 MERV 13 Filter ERV 3PK (TRe300)
990762 MERV 13 Filter ERV 10PK (TRe200)
990764 MERV 13 Filter ERV 10PK (TRe300)
990767 MERV 13 Filter ERV 25PK (TRe200)
990769 MERV 13 Filter ERV 25PK (TRe300)
990076 Universal Filters (10 Packs of Filter Media) (TRe200/TRe300) Submittal
990447 Universal Filters (3 Packs of Filter Media) (TRe200/TRe300) Submittal
FA8-G 8" Galvanized Metal Wall Cap (TRe200/TRe300)
FA8-P 8" Paintable Metal Wall Cap (TRe200/TRe300)
VW106 6" White Vinyl Wall Cap (TRe200/TRe300)
VW12X8 12x8-inch Louver to 8" Round Galvanized Metal Wall Cap (TRe200/TRe300)
VT8 8" Taupe Vinyl Wall Cap (TRe200/TRe300)
VB-106 6" Brown Vinyl Wall Cap (TRe200/TRe300)
BD6 6" Gravity Backdraft Damper (TRe200/TRe300)
BD8 8" Gravity Backdraft Damper (TRe200/TRe300)
