DFE and DFS Direct Drive Sidewall Propeller Exhaust/Supply Fans

Sidewall Propeller Fan Series

DF Models

Model Features

  • Exhaust air up to 12,000 CFM in high-pressure applications up to 1" w.g.
  • 16 or 18 gauge galvanized steel panel, G-90
  • Welded schedule 40 galvanized steel pipe support structure
  • Precision pitched fabricated aluminum blades
  • Cast aluminum and non-metallic blade options on select sizes
  • Available 2-speed units in select models
  • Suitable for all-angle installation
  • AMCA Air and Sound Licensed
  • cULus 705 Listed

AMCA Air and Sound Licensed   cULus Listed

Model Overview

The DFE and DFS Direct Drive Sidewall Propeller Exhaust/Supply Fan feature the maximum efficiency, low maintenance and durable, economical operation resulting from the direct drive design. It is available in exhaust configurations to provide general ventilation for a wide variety of buildings and enclosed areas within buildings. Examples include factories, assembly plants, churches, gymnasiums, garages, jails, machine rooms and many others.

Industry best 5-year fan housing warranty, 1-year motor warranty

Size CFM Range Max SP
10 37 to 409 1/2"
12 132 to 1306 1"
16 132 to 1750 1"
18 264 to 4174 1"
20 509 to 6605 1"
24 98 to 8897 1"
30 1397 to 12415 1"

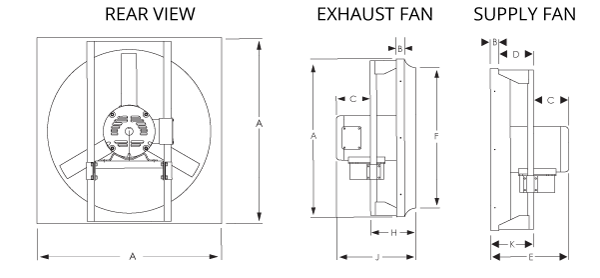

Dimensional Drawing DF
Size A B C1 D E1 F
10 16" 1" 6" 6" 11" 10-1/2"
12 16" 1" 6" 6" 11" 10-1/2"
16 20" 1" 6" 6" 12" 16-1/2"
18 24" 1" 6" 6" 12" 18-1/2"
20 24" 1" 7" 6" 12" 20-1/2"
24 30" 2" 10" 9" 21" 25"
30 36" 2" 10" 9" 21" 31"
Size G H I1 J K
10 16" 1" 6" 6" 11"
12 16" 1" 6" 6" 11"
16 20" 1" 6" 6" 12"
18 24" 1" 6" 6" 12"
20 24" 1" 7" 6" 12"
24 30" 2" 10" 9" 21"
30 36" 2" 10" 9" 21"

1. Varies with motor selection.

Mounting Option Description
Wall Housing Heavy-gauge, all galvanized G-90 steel housing provides a simple solution to installing a fan and all required accessories in a rough wall opening. It can be used in exhaust or supply applications and fan sizes 10 to 60 inches.
Filtered Wall Housing For installations where filtering is required. Heavy-gauge, all galvanized, G-90 steel filtered wall housings are available in both supply and exhaust configurations. They are available in nine (9) sizes for fans ranging from size 14 to 60 inches. They are designed with the draw-thru concept to achieve the highest filter and fan efficiencies.
Wall Collar Heavy-gauge, all G-90 galvanized mounting collar provides a simple solution to installing a fan in a rough wall opening when a rear safety guard is NOT required.

Note: Additional accessories are available for certain products. Contact your JencoFan Representative for more information about these accessories.

Standard Accessories

Description
Rainhoods/Weatherhoods   Download
Gravity Dampers for Exhaust and Supply   Download
Motorized Dampers for Exhaust and Supply   Download
Disconnect Switches   Download
Extended Lube Lines   Download
Mounting Angles   Download
Factory Wiring   Download

Description
DFE and DFS Catalog Pages   Download
DFE and DFS Product Submittal   Download
DFE and DFS Product IOM   Download

  • General/Clean Air
