PCD DC Motor Models
Premium CHOICE Series by S&P
Model Features
- Extremely quiet operation 0.3 to 1.5 Sones
- Brushless DC motor for long life
- Motor rated for 60,000 hours continuous on High/Low-speed delay timer
- 6" Duct connector with built-in backdraft damper
- Robust steel housing
- Attractive, sturdy grille
- cETLus Listed
- ENERGY STAR® qualified
- HVI Certified
- CALGreen (Title 24 Compliant)
- Ecowatt®
Model Overview
PCD fans feature the most efficient DC motors available to help improve indoor air quality and increase your home's durability by quickly exhausting contaminants and excess moisture that can cause health issues, mold growth, and structural damage. With built-in control boards, the PCD models allow you to CHOOSE your airflow. The DC fans are available with humidity sensing, motion sensing, and VOC sensing options built-in.
6-year warranty
Technical Specifications
| Model | Speed | Duct Dia. | HVI Certified CFM 0.1" SP | HVI Certified CFM 0.25" SP | Sound (Sones) | Voltage / Frequency | Wattage | Current (Amps) | Avg. Ship Weight (lbs) |
| PCD80XH | High | 4" | 80 | 61 | 1.5 | 120V / 60Hz | 15.6 | 0.35 | 7 |
| Low | 40 | 20 | 0.7 | 6.8 |
Toggle Switch Settings (PCD110X Models Only)
The built-in switch and duct connector options allow you to set the PCD fan to the required airflow. Use the below chart to adjust your switch connections by changing the toggle switch to match the diagram.
| All Variants | Duct Dia. | HVI Certified CFM 0.1" SP | HVI Certified CFM 0.25" SP | Sones @ 0.1" SP | Voltage / Frequency | Energy Efficiency (CFM/Watts) | Watts @ 0.1" SP | Current | Avg. Ship Weight |
| PCD100X | 6" | 40 | - | <0.3 | 120V / 60Hz | 9.6 | 4.2 | 0.09A | 11 lbs |
| 90 | 51 | 0.5 | 12.2 | 8.1 | 0.16A | ||||
| 110 | 78 | 0.9 | 11.4 | 10.3 | 0.20A | ||||
| 120 | 91 | 1.2 | 10.8 | 12.2 | 0.22A | ||||
| 140 | 113 | 1.5 | 9.4 | 15.6 | 0.27A |

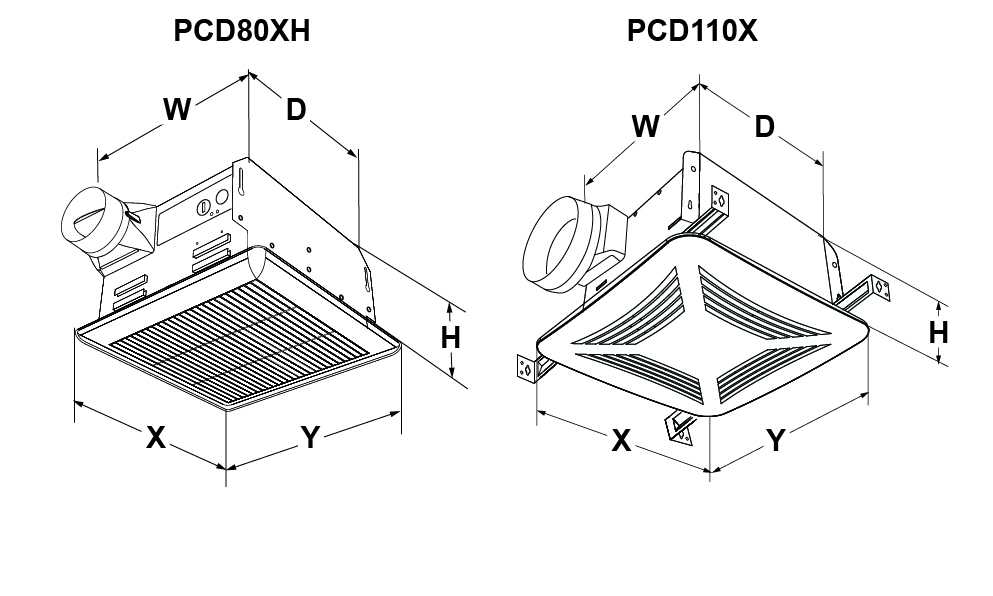

| Model | X | Y | W | D | H |
| PCD80XH | 10-13/16" | 10-7/16" | 9" | 9" | 5-3/4" |
| PCD110X | 13" | 14" | 11-3/8" | 10-1/2" | 7-5/8" |
Plug-&-Play Grille Options
Metal Grille
PCMG - Metal Grille
- 13 x 14" metal grille
- Ideal for commercial applications
- Only Compatible with PCD110X Models
Lighted Grille Kit
PCLK - CFL Lighted Grille Kit
- 13 watt GU24 bulb (2700K/900 lumens)
- 4 watt night light bulb
- Simple plug-in receptacle in fan housing
- Can be installed with new or pre-installed fan
- Only Compatible with PCD110X Models
PCLEDK - LED Lighted Grille Kit
- 11 watt LED array (4100K/1100 lumens)
- 2 watt LED night light setting (200 lumens)
- Simple plug-in receptacle in fan housing
- Can be installed with new or pre-installed fan
- Only Compatible with PCD110X Models
PCVLEDK - LED Lighted Grille Kit
- 13 Watt LED Light (4100K/1100 Lumens)
- Simple plug-in receptacle in fan housing
- Can be installed with new or pre-installed fan
- Only Compatible with PCD80XH Models
PCVLK - CFL Lighted Grille Kit
- 13 watt GU24 bulb (2700K/900 lumens)
- Simple plug-in receptacle in fan housing
- Can be installed with new or pre-installed fan
- Only Compatible with PCD80XH Models
Sensing Grille Kit
PCDLMG - Motion Sensing Lighted Grille Kit
- Compatible with PCD110XM and PCD110XMH
- 13 Watt GU24 Bulb (2700K/900 Lumens)
- 4 Watt Night Light Bulb
- Automatically turns on fan when motion is sensed
- Adjustable Time Delay Shut-Off from 3 to 30 Minutes
- Simple Plug-In Receptacle in Fan Housing
- Can be installed with New or Pre-Installed Fan
- Only Compatible with PCD110X Models
Note: Additional accessories are available for certain products. Contact your JencoFan Representative for more information about these accessories.
All product accessories are compatible with the PCD110X Models unless otherwise indicated in the part description.
Radiation Dampers & Kits
| PCRD | Ceiling Radiation Damper | SubmittalIOM |
| PCLKRD | Ceiling Radiation Damper Kit with PCLK | Submittal |
| PCLEDKRD | Ceiling Radiation Damper Kit with PCLEDK | Submittal |
| PCMGKRD | Ceiling Radiation Damper Kit with PC110M and PCD110MH | |
| PCD110MRD | Ceiling Radiation Damper for PC110M and PCD110MH | Submittal |
| PCVRD | Ceiling Radiation Damper (ONLY COMPATIBLE WITH PCD80XH) | Submittal |
| PCVLEDKRD | Ceiling Radiation Damper Kit with PCVLEDK (ONLY COMPATIBLE WITH PCD80XH) | Submittal |
Electrical Controls
| PC3S | 3-Switch Control | Submittal |
| FLTD-60 | Fan/Light Delay Timer Switch | Submittal |
| SRT-30 | Rotary Spring Wound Timer | Submittal |
| EPBT-60 | Electronic Push Button Timer | Submittal |
| FT622 | ASHRAE 62.2 Bath Fan Ventilation Control | Submittal |
| FT247 | Programmable Fan Timer | Submittal |
General Accessories
| PER-W | Plastic Louvered Shutter | Submittal |
| GRA | Aluminum Exterior Fixed Grille | Submittal |
| RC | Roof Cap | Submittal |
| ME | Round Adjustable Metal Elbow | Submittal |
| DC | Duct Connector | |
| WC | Worm Clamp |
Replacement Parts
| PCDC4 | Replacement 4" Duct Connector (ONLY COMPATIBLE WITH PCD80XH) | |
| PCDC6 | Replacement 6" Duct Connector |
- Residential Bathroom Exhaust
- Commercial Bathroom Exhaust
- Local Exhaust
- Dwelling Unit Ventilation
