TXB, TXB-HP, and TXB-RHUL Upblast Belt Drive Centrifugal Roof Exhaust Fans

Centrifugal Roof & Wall Fan Series

TXB, TXB-HP, and TXB-RHUL Models

Model Features

  • Exhaust air up to 35,000 CFM in high static pressure applications up to 3-1/4" w.g.
  • Attractive spun aluminum exterior
  • Belt drives permit easy performance adjustments when needed
  • Non-overloading backward inclined wheel for efficiency at higher static pressures
  • Roof or sidewall mounting options
  • AMCA Air and Sound Licensed
  • cULus 705 or 762 Listed

AMCA Air and Sound Licensed   cULus Listed

Model Overview

TXB belt drive fans are designed to exhaust air up to 35,000 CFM, with high static pressure capability up to 3-1/4". The belt drive results in lower operating RPM and sound levels, making the TXB well suited to applications where quiet operation is important. Belt drives also permit easy performance adjustments when needed to balance the total ventilation system. The non-overloading backward inclined wheel with its higher static pressure capability makes this unit suitable for either ducted or non-ducted applications. Its roof or sidewall mounting options permits short duct runs and more efficient operation.

Isolation of motor and drive components from the airstream, and the high-velocity vertical air discharge makes this fan ideally suited for the removal of dirty contaminated and/or high-temperature air from buildings and manufacturing plants. Typical applications include restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

Industry best 5-year fan housing warranty, 1-year motor warranty
TXB-RHUL units have 2-year fan housing warranty

Size CFM Range Max SP
36 3165 to 22093 2"
36HP 5189 to 20834 2-3/4"
42 6123 to 29115 1-3/4"
48 8340 to 35139 1-3/4"

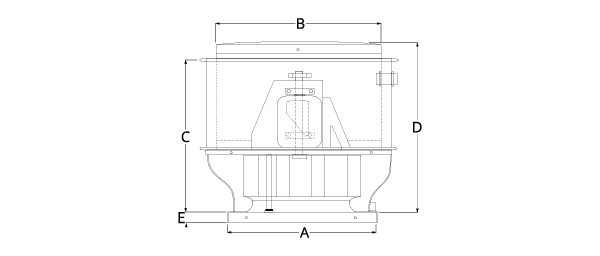

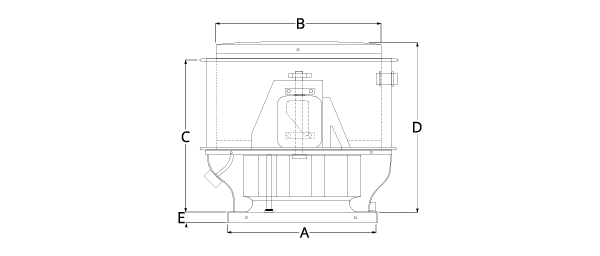

Dimensional Drawing TXB
Size A B C D E
36 42-1/2" 66" 44" 48" 2-1/2"
42 55" 72-1/2" 48" 52" 2-1/2"
48 55" 78-3/4" 52" 55" 2-1/2"

Note: Additional accessories are available for certain products. Contact your JencoFan Representative for more information about these accessories.

Standard Accessories

Description
Automatic Belt Tensioner   Download
Aluminum Grease Trough   Download
Grease Grabber   Download
Automatic (Gravity) Damper   Download
Motor Operated Damper   Download
Roof Curb   Download
Curb Hinge Arrangement   Download
Wall Mount Kit   Download

Description
TXB, TXB-HP, and TXB-RHUL Catalog Pages   Download
TXB Product Submittal   Download
TXB-HP Product Submittal   Download
TXB-RHUL Product Submittal   Download
TXB, TXB-HP, and TXB-RHUL Product IOM   Download
